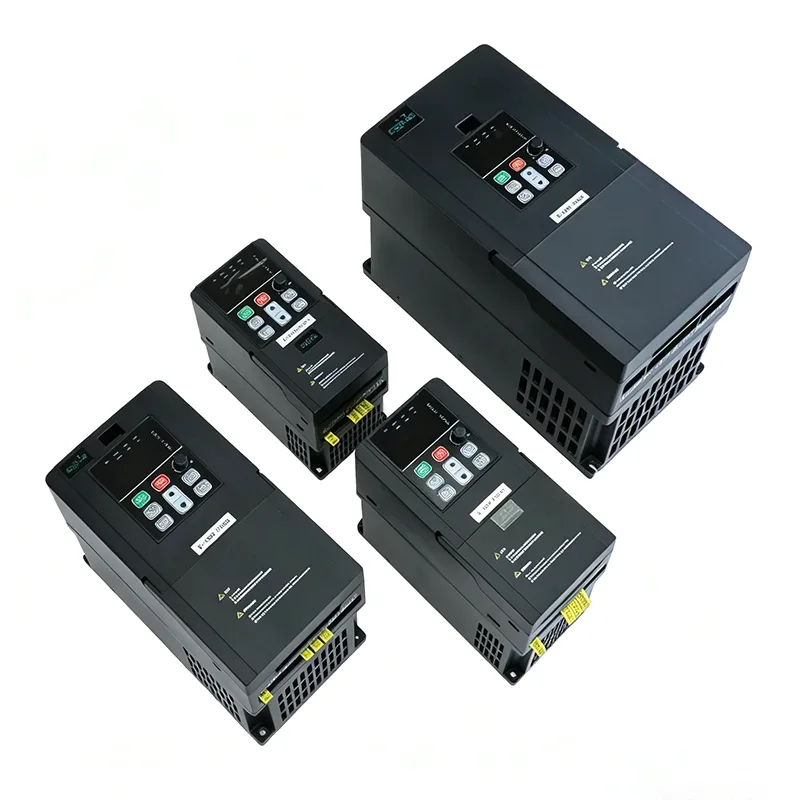

60HP 45kw 3 Phase 380V VFD Pump

The CSIVEI 60HP 45kw 3 Phase 380V VFD Pump is a high-performance drive designed for heavy-duty industrial applications. Suitable for large fans, centrifugal pumps, compressors, and production line conveyors, it delivers exceptional torque and stability under continuous operation. Powered by advanced closed-loop vector control, this drive supports high starting torque, built-in PLC functionality, multiple communication protocols (Modbus, Profibus optional), and an intuitive LCD keypad for real-time monitoring. The IP20 enclosure with optional IP40 filter ensures reliability in demanding environments. Engineered for energy efficiency and operational precision, the CSIVEI 60HP 45kw 3 Phase 380V VFD Pump is the ideal choice for mission-critical motor control in industrial facilities.

Core Parameters and Specifications

Typical Applications

The CSIVEI 60HP 45kw 3 Phase 380V VFD Pump handles the most demanding industrial drives with high efficiency:

●  Large compressors – air separation units, LNG compressors, turbo compressors

●  Heavy pumps – seawater intake pumps, cooling water pumps, main drainage pumps

●  Steel and metal – rolling mills, continuous casting lines, coilers

●  Cement – kiln drives, clinker coolers, cement mill drives

●  Paper – paper machine drives, pulp refiners, winders

With optional liquid cooling and redundant components, it ensures maximum uptime for critical processes.

Application-Specific Features

The CSIVEI VFD series includes specialized functions tailored for common industrial applications, simplifying system design and enhancing performance.

Built-in PID for Pump & Fan Control – Ideal for constant pressure water supply, HVAC systems, and ventilation applications. The drive accepts direct input from pressure or flow sensors and automatically adjusts speed to maintain setpoint.

Dynamic Braking – Built-in braking unit on select models allows connection of external braking resistors, enabling rapid deceleration and precise stopping for applications such as cranes, hoists, and centrifuges.

Flying Start – The drive can smoothly capture a spinning motor without first stopping it, eliminating nuisance tripping in applications with windmilling fans or freewheeling loads.

Fire Mode (Firefighter’s Mode) – In fire protection applications, the drive can override fault conditions and continue operation to ensure critical ventilation or water supply systems remain functional during emergencies.

Pump Cleaning Function – Periodically rotates the pump in reverse direction to prevent scaling and blockage in dirty water or wastewater applications, extending pump life and reducing maintenance.

FAQs

Does the 60HP 45kw 3 Phase 380V VFD Pump come with a warranty and technical support?

Yes. CSIVEI drives come with a standard 18‑month warranty from the date of manufacture (or 12 months from installation, whichever is later). Extended warranty options are available for critical applications. Global tech support is available via email, phone, and online resources—user manuals, application guides, and configuration software are all included.

How do I choose the right VFD for my motor?

A few things to consider:

●  Motor power—the VFD should match or be slightly larger than the motor rating.

●  Input voltage—single‑phase 230V or three‑phase 400V, make sure it matches your supply.

●  Load type—constant torque loads like conveyors or extruders usually need the VFD sized at 100–120% of motor power. Variable torque loads like fans and pumps can often use a VFD matched to motor power, plus you get energy savings.

●  Environment—for dusty, humid, or outdoor locations, go for a higher IP rating (IP40, IP54, IP66) or put the drive in a protected enclosure.

●  Communication—if you need to talk to a PLC or SCADA, check that the drive supports your protocol (Modbus RTU is standard; Profibus, Ethernet/IP, etc. are optional).

●  CSIVEI also has a sizing tool and tech support if you want a second opinion.

Do I need an external braking resistor?

It depends. If you need rapid deceleration or the load has high inertia—like centrifuges, cranes, hoists, or winders—then yes, you'll need one. On drives that have an internal braking unit, the resistor handles the regenerative energy to avoid over‑voltage faults and shorten stopping times. For fans and pumps with slower deceleration, you can usually skip it.

What protections are built into the drive?

CSIVEI drives include a solid set of protections: over‑voltage, under‑voltage, over‑current, short circuit, over‑temperature (heatsink), phase loss on input or output, and motor overload (electronic thermal overload, I²t). These help keep things running reliably and extend equipment life.

How does the VFD save energy?

For variable torque loads like fans and pumps, power follows the affinity laws—it's proportional to the cube of speed. Dropping speed by 20% cuts energy use by roughly 50%. The Automatic Energy Optimization (AEO) feature reduces voltage to match actual load for extra savings. Sleep Mode also shuts the motor off during low‑demand periods, eliminating idle power draw.
