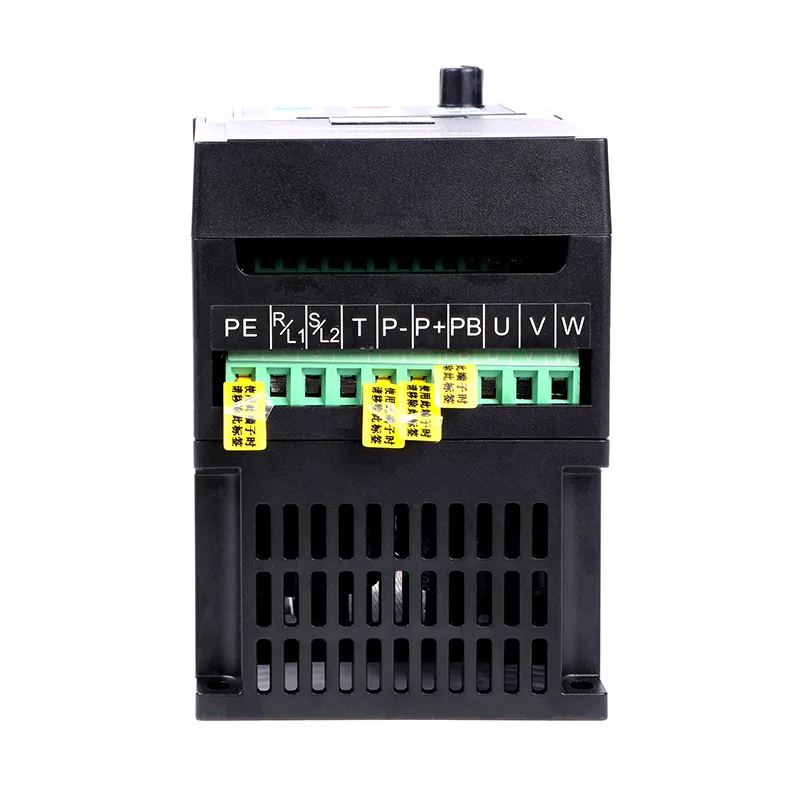

280KW VFD Water Treatment System

The CSIVEI 280KW VFD Water Treatment System is a high-capacity drive engineered for ultra-heavy industrial applications. Designed for large compressors, extruders, mine hoists, and high-power pumps, this drive delivers uncompromising performance and reliability. Featuring advanced vector control with high starting torque, built-in EMI filter, redundant cooling system, and extensive communication options including Ethernet/IP and Profinet. The rugged IP20/IP21 enclosure with reinforced busbars ensures stable operation in the most demanding industrial environments. With intelligent energy management and comprehensive diagnostic capabilities, it provides the power and precision required for critical industrial processes.

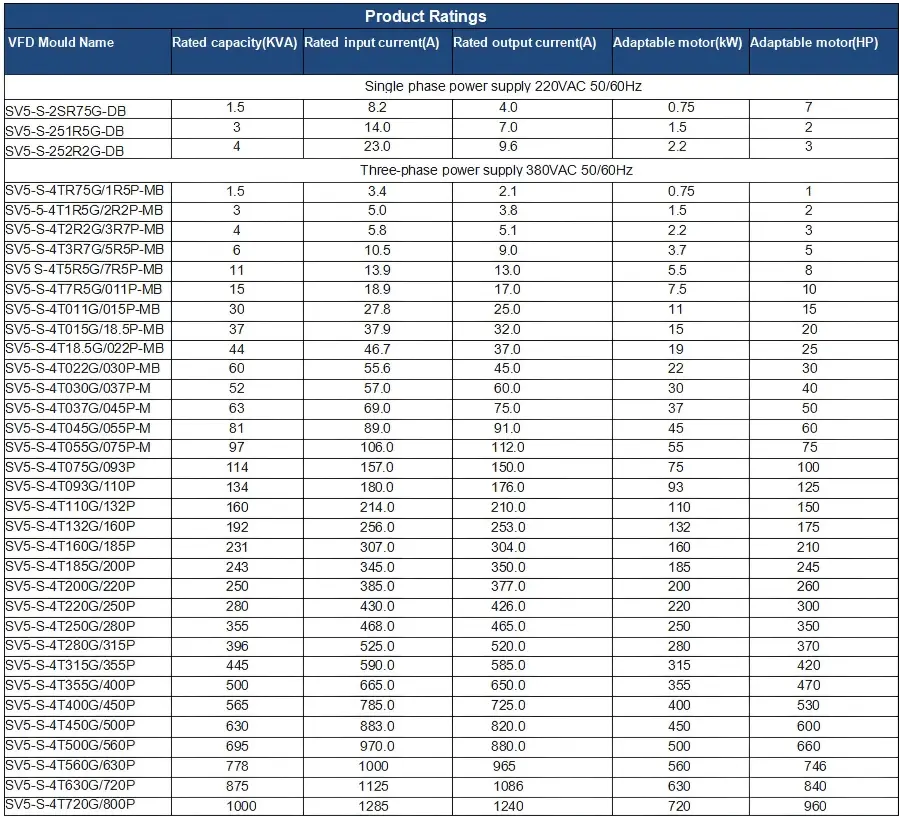

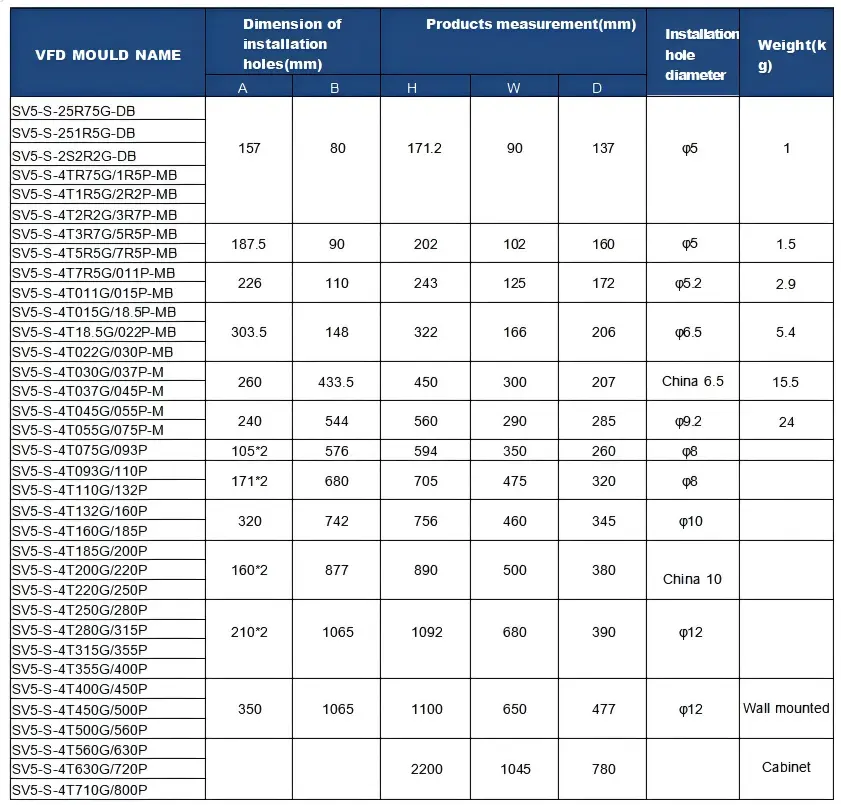

Core Parameters and Specifications

Typical Applications

The CSIVEI 280KW VFD Water Treatment System is a high-power drive for mega-industrial projects:

Large-scale pumps – municipal water supply, irrigation district main pumps

High-power fans – mine ventilation, wind tunnel, cooling tower main fans

Compressors – large industrial air stations, process gas compressors

Mining – SAG mills, ball mills, conveyors with long distances

Power generation – boiler feed pumps, ID/FD fans in thermal plants

Its modular design allows easy maintenance and serviceability in confined spaces.

User-Friendly Operation & Easy Setup

The CSIVEI VFD series prioritizes ease of use, reducing installation time and simplifying daily operation for engineers and maintenance personnel.

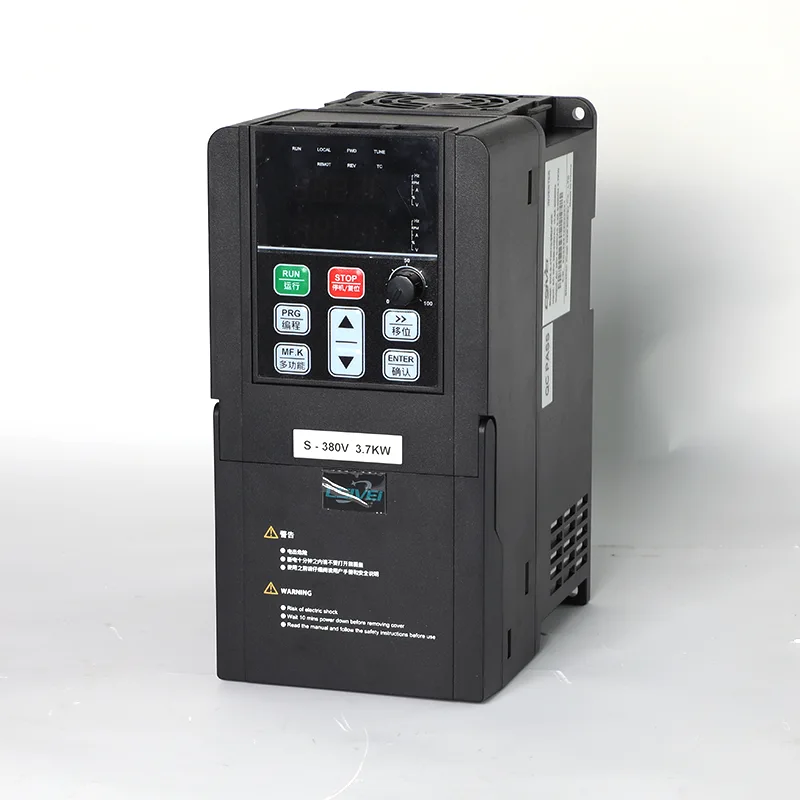

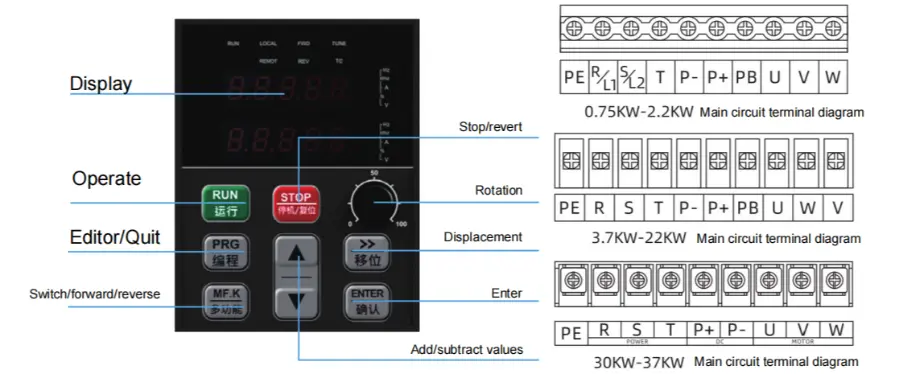

Intuitive Keypad – The LED/LCD keypad provides clear parameter display and quick navigation. Parameter groups are logically organized, and multi-language support ensures accessibility for global users.

Quick Start Wizard – Step-by-step setup guides users through basic parameter configuration in minutes. Pre-configured application macros (Fan/Pump, Conveyor, Constant Torque) allow one-touch setup for common applications.

Parameter Copy Function – Upload parameters from one drive to the keypad and download to multiple drives, significantly reducing setup time for multi-drive systems and ensuring consistent configuration.

Removable Keypad – The keypad can be mounted remotely using an extension cable, enabling convenient operation from control panel doors or remote locations.

Compact Design – Space-saving footprint allows side-by-side mounting, maximizing panel density and reducing cabinet size requirements.

FAQs

How do I troubleshoot common faults?

The drive shows fault codes on the keypad for quick diagnosis:

●  OC (over‑current) – check for shorts, motor winding issues, or accel time too short

●  OV (over‑voltage) – check the braking resistor (if used) or decel time too short

●  UV (under‑voltage) – check input power and wiring

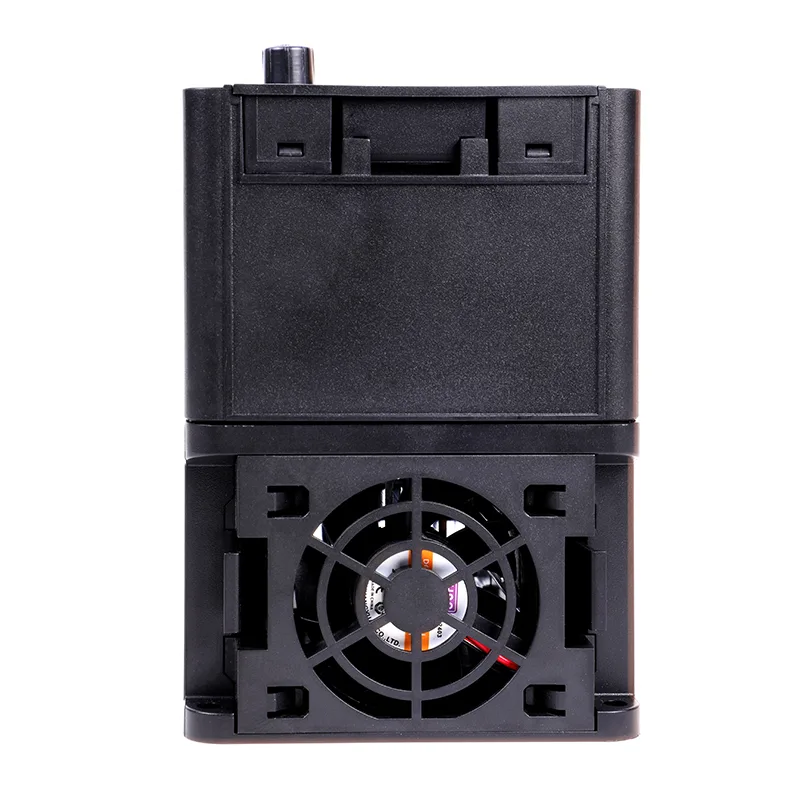

●  OH (over‑temperature) – check the cooling fan, ambient temperature, and mounting clearance

●  OL (overload) – check the motor load, increase accel time, or consider upsizing the drive

●  The manual has a full fault code table with detailed steps. If something's still off, CSIVEI tech support can help.

What's the difference between V/F control and vector control?

V/F control keeps a fixed voltage-to-frequency ratio. It's fine for fans, pumps, and general applications where precise speed control isn't critical. Vector control separates flux and torque so you can control them independently—that gives you higher starting torque (up to 150% at 0.5Hz) and better speed accuracy. Sensorless vector doesn't need an encoder; closed-loop vector does, and it pushes speed accuracy to 0.1%. Most CSIVEI drives support both, so you can pick whichever fits your application.

Can I use a single‑phase input VFD with a three‑phase motor?

Yes. CSIVEI's 280KW VFD Water Treatment System takes single‑phase input and output three‑phase power to the motor. It's a common setup when only single‑phase power is available but you want the efficiency and reliability of a three‑phase motor. Just make sure the motor's voltage matches the drive's output—230V three‑phase.

How does the VFD save energy?

For variable torque loads like fans and pumps, power follows the affinity laws—it's proportional to the cube of speed. Dropping speed by 20% cuts energy use by roughly 50%. The Automatic Energy Optimization (AEO) feature reduces voltage to match actual load for extra savings. Sleep Mode also shuts the motor off during low‑demand periods, eliminating idle power draw.

Does the VFD come with a warranty and technical support?

Yes. CSIVEI drives come with a standard 18‑month warranty from the date of manufacture (or 12 months from installation, whichever is later). Extended warranty options are available for critical applications. Global tech support is available via email, phone, and online resources—user manuals, application guides, and configuration software are all included.

Customer Case: Constant Pressure Water Supply

A residential complex in Southeast Asia was experiencing fluctuating water pressure during peak usage hours, leading to tenant complaints. The existing pump system ran at fixed speed, wasting energy during low-demand periods.

Solution: A CSIVEI 280KW VFD Water Treatment System was installed to control the main booster pump, with a pressure sensor providing feedback to the built-in PID controller.

Results:

Stable water pressure maintained at 4.5 bar regardless of demand

Energy consumption reduced by 38% compared to fixed-speed operation

Pump motor starts reduced from 20+ times per day to continuous smooth operation

Payback period achieved in 11 months

The system has been operating reliably for over two years with no unscheduled downtime.
