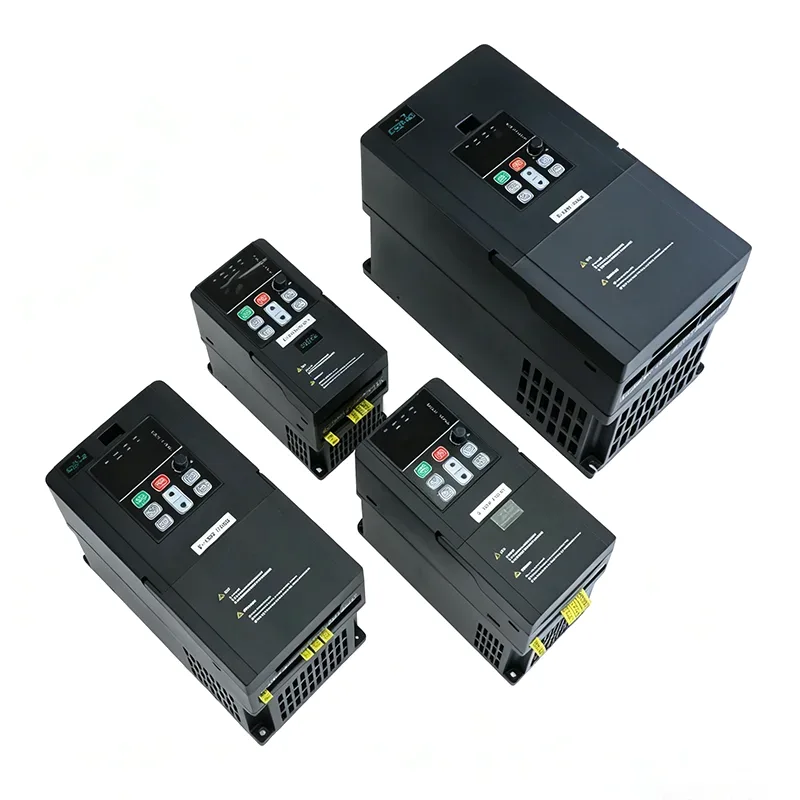

5HP 7.5HP 1 Phase General VFD

As a prominent industrial automation solutions provider in China, Csivei specializes in manufacturing high-performance 5HP 7.5HP 1 Phase General VFDs. This series is engineered with upgraded heavy-duty power modules and advanced vector control algorithms to handle the rigorous demands of medium-to-large AC induction motors. Our 3-5.5kW VFD systems deliver superior torque control at low speeds, ensuring stable operation for high-load industrial machinery. By implementing our variable frequency drive technology, enterprises can achieve substantial energy savings and extended motor lifespan through precise speed modulation.

What is a 5HP 7.5HP 1 Phase General VFD?

The Csivei 5HP 7.5HP 1 Phase General VFD is a high-capacity power conversion device designed to drive three-phase AC motors using a standard single-phase 230V power input. It utilizes pulse-width modulation (PWM) to provide adjustable voltage and frequency output, enabling seamless speed control for motors rated between 3kW and 5.5kW. This eliminates the need for expensive three-phase grid installations in workshops and remote facilities.

Key Features

1. High-Power Single Phase Input Compatibility

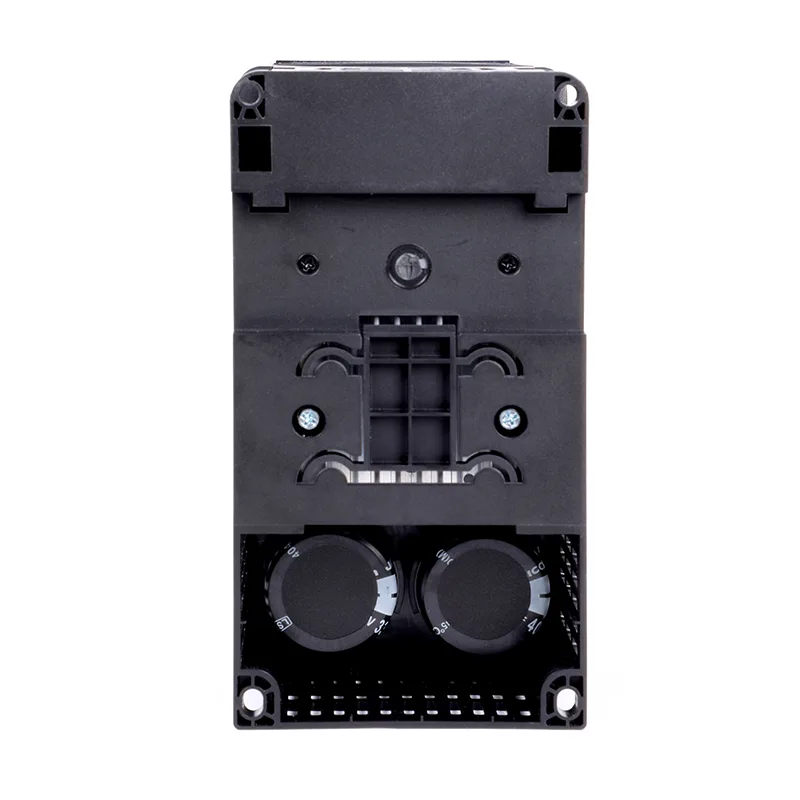

This specialized 5HP 7.5HP 1 Phase General VFD is optimized for environments where only single-phase power is available but high-torque three-phase motor performance is required. The internal DC bus and capacitor bank are reinforced to handle the higher ripple currents associated with 5.5kW loads.

2. Expanded Power Range

The drive supports a versatile range of motor specifications: 3.0kW, 3.7kW, 4.0kW, and 5.5kW.

3. Advanced Sensorless Vector Control

Unlike basic VFDs, this 5HP 7.5HP 1 Phase General VFD features advanced vector control, providing 150% starting torque at 0.5Hz. This ensures precise speed regulation and powerful performance even under fluctuating load conditions.

4. Optimized Thermal Management

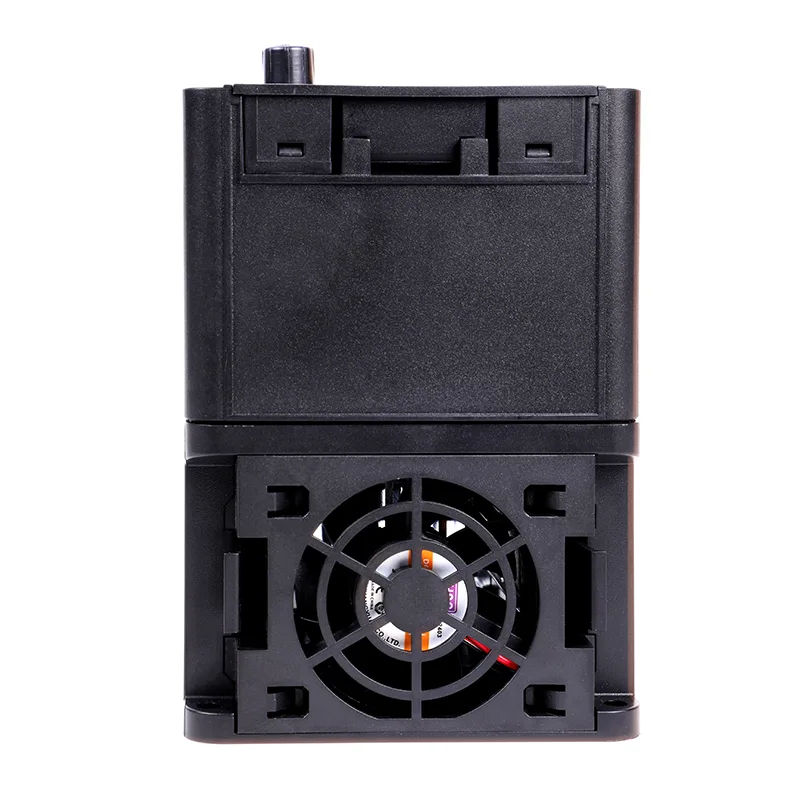

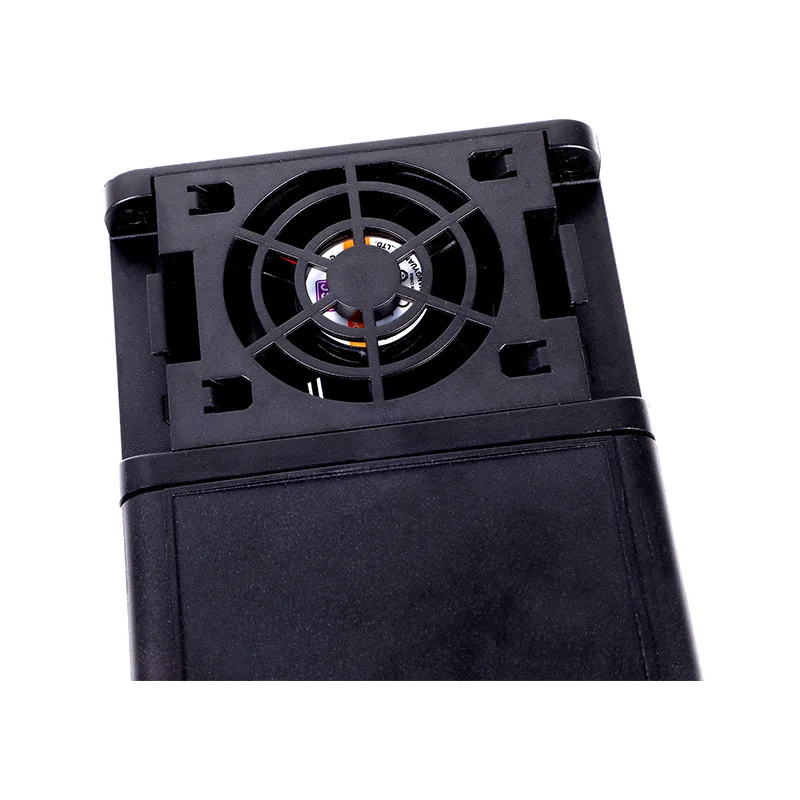

Equipped with a high-efficiency aluminum heatsink and a forced-air cooling system, the 3.5-5.5kW VFD maintains stable operating temperatures during continuous heavy-duty cycles, ensuring long-term reliability.

5. Industrial-Grade Protection Mechanisms

To safeguard your investment, the Csivei 3-5.5kW VFD integrates a comprehensive suite of protection functions:

●  Overcurrent & Overload Protection (for high-inertia starts)

●  Input/Output Phase Loss Protection

●  Overvoltage & Undervoltage Monitoring

●  IGBT Module Overheat Protection

●  External Fault Interlocking

6.User-Friendly Interface & Communication

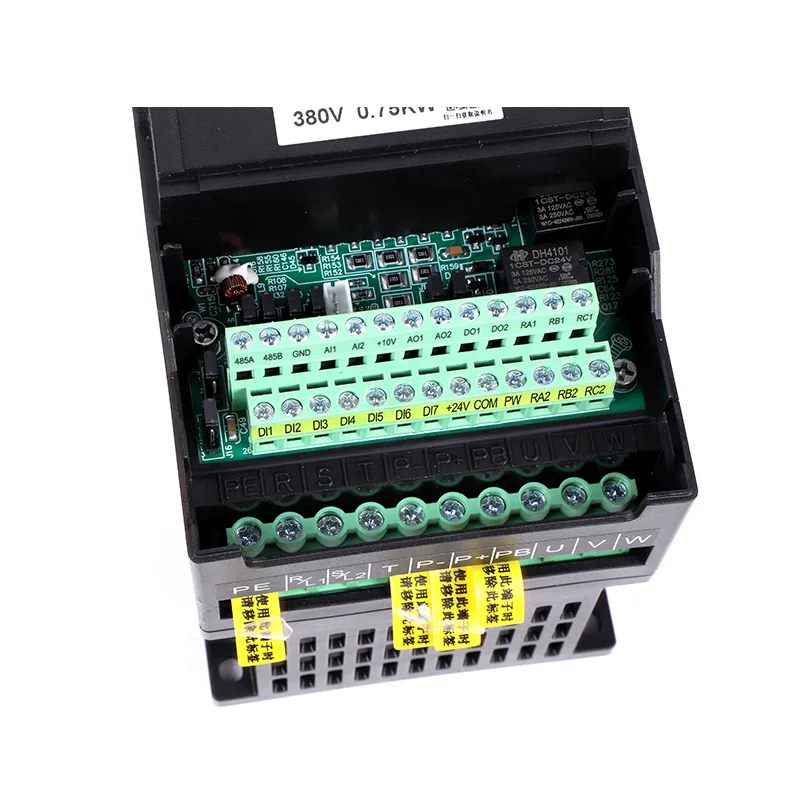

Features a detachable digital keypad for remote monitoring and supports RS485 (Modbus RTU) communication for integration into PLC-controlled automation lines.

Product Application

1. Heavy-Duty Water Pumps

The 5HP 7.5HP 1 Phase General VFD is ideal for deep-well pumps, high-pressure booster systems, and large-scale agricultural irrigation where three-phase power is unavailable.

2. Industrial Blowers and HVAC

Perfect for large exhaust fans, industrial dust collectors, and centralized air conditioning units, providing soft-start capabilities to reduce grid impact.

3. CNC and Metalworking Machinery

Widely used in CNC lathes, milling machines, and grinding equipment requiring high precision and variable spindle speeds.

4. Heavy Conveyor & Mixing Systems

Provides the necessary torque for starting loaded conveyor belts, cement mixers, and industrial food blenders without mechanical jerking.

5. Air Compressors & Refrigeration

Optimizes the duty cycle of screw air compressors and large refrigeration compressors, leading to energy reductions of up to 40%.

FAQ

Q1: Can a 5.5kW VFD run a smaller 3kW motor?

A1: Yes. You can use a 5HP 7.5HP 1 Phase General VFD for smaller motors by adjusting the motor parameter settings (P-group) to match the smaller motor's rated current and power.

Q2: Why do I need a 5.5kW VFD for a single-phase 230V line?

A2: Many industrial machines require high power, but 3-phase power installation is costly. Our VFD allows you to run high-torque 3-phase motors (up to 5.5kW) directly from your existing 230V single-phase supply.

Q3: Does this VFD support constant torque applications?

A3: Absolutely. Thanks to its vector control algorithm, it maintains constant torque even at low frequencies, making it suitable for cranes, elevators, and heavy mixers.
