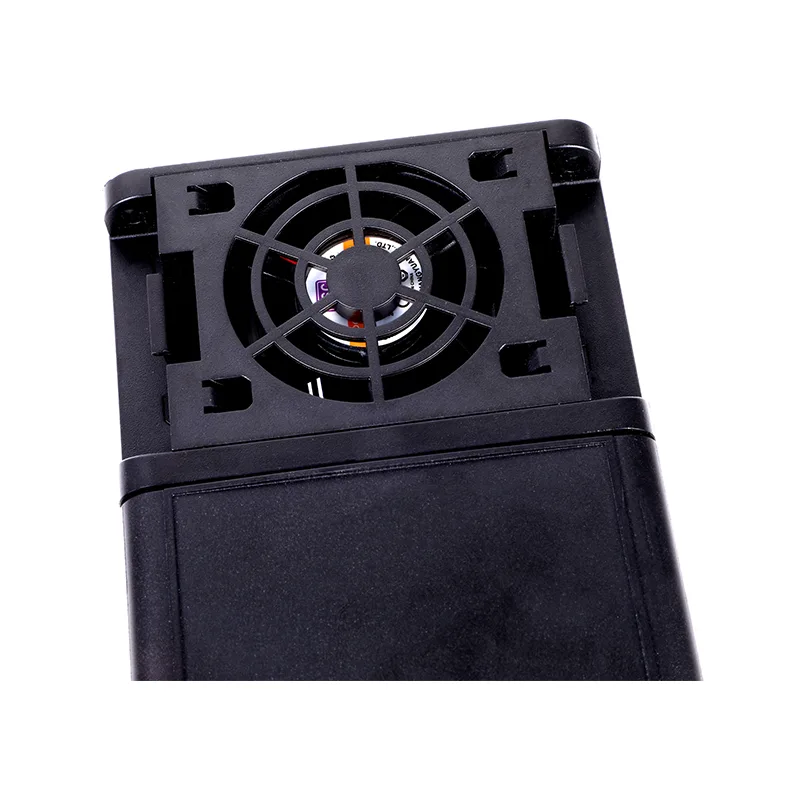

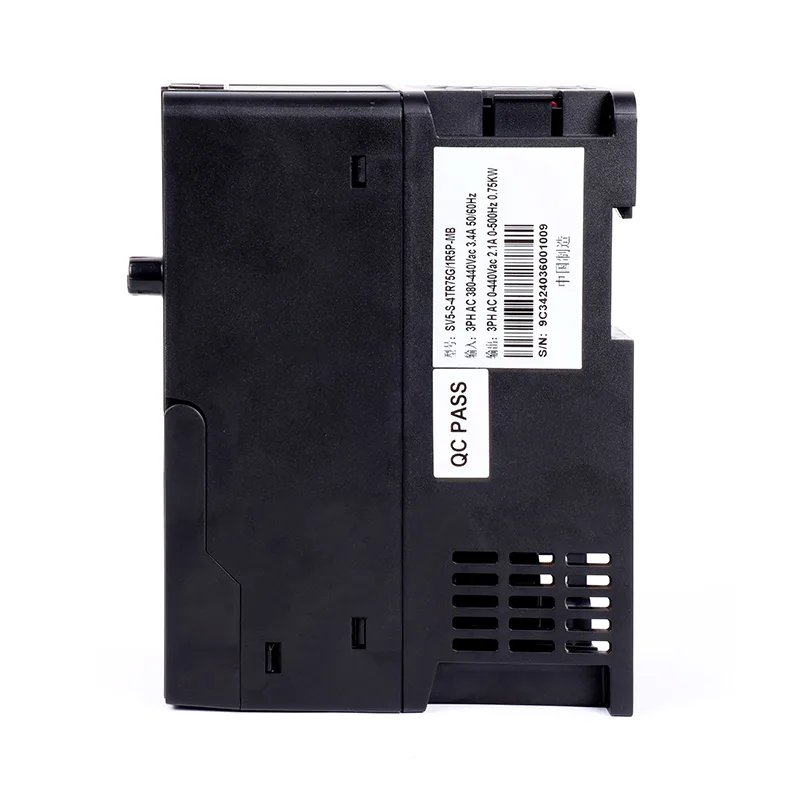

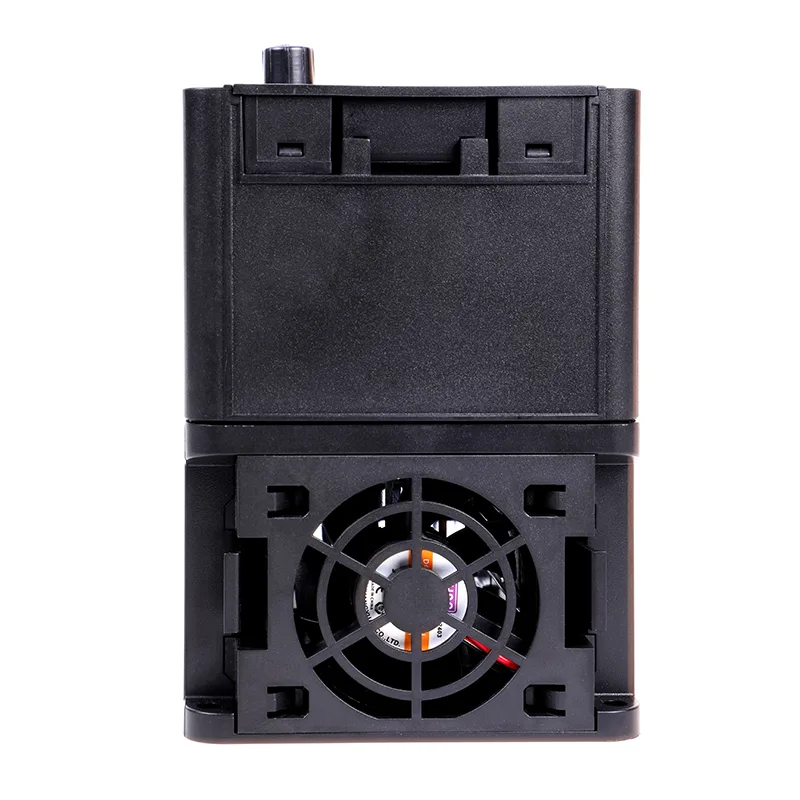

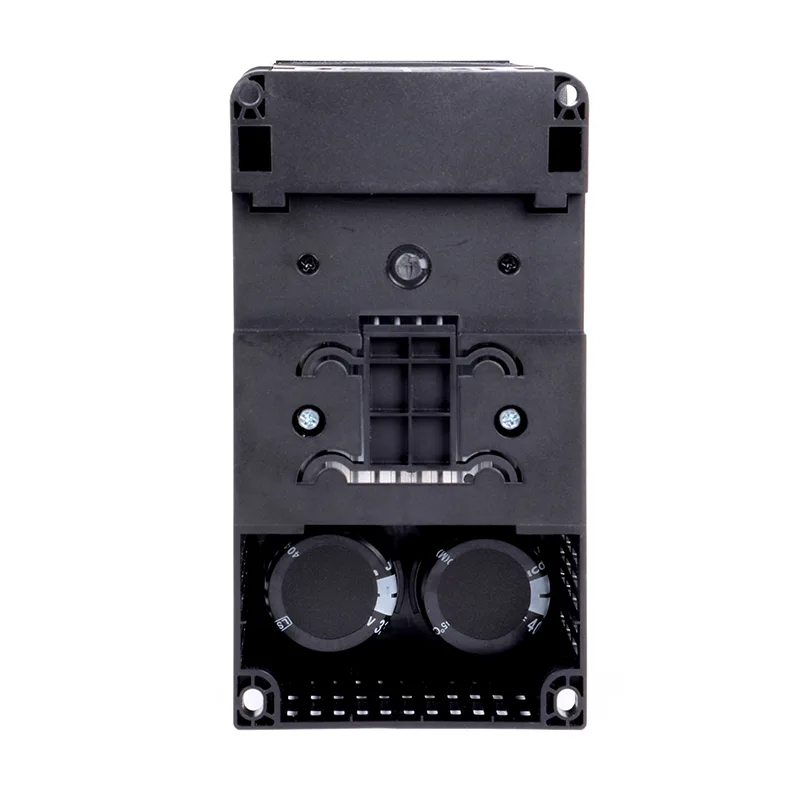

40HP 30kw 3 Phase 380V VFD AC Drive

Featuring advanced vector control with high starting torque, built-in EMI filter, redundant cooling system, and extensive communication options including Ethernet/IP and Profinet. The rugged IP20/IP21 enclosure with reinforced busbars ensures stable operation in the most demanding industrial environments.

With intelligent energy management and comprehensive diagnostic capabilities, the CSIVEI 40HP 30kw 3 Phase 380V VFD AC Drive provides the power and precision required for critical industrial processes.

Core Parameters and Specifications

Typical Applications

The CSIVEI 40HP 30kw 3 Phase 380V VFD AC Drive is built for high-power industrial and infrastructure applications:

●  High-pressure pumps – desalination plants, pipeline pumps, hydraulic systems

●  Large compressors – industrial air stations, gas compressors

●  Mining conveyors – long-distance belt conveyors, ore handling systems

●  Centrifugal chillers – large HVAC systems, district cooling

●  Winders and unwinders – paper mills, textile winding, wire drawing

Its energy-saving algorithms and predictive maintenance features reduce total cost of ownership.

Energy Efficiency & Cost Savings

The CSIVEI VFD series helps industrial facilities reduce energy consumption and operational costs through intelligent motor control and energy optimization features.

Automatic Energy Optimization (AEO) – The drive continuously monitors motor load and automatically adjusts voltage and current to match actual demand. This feature can reduce energy consumption by 20-50% in variable torque applications such as fans and pumps.

Sleep Mode – When system demand falls below a preset threshold, the drive automatically stops the motor to eliminate idle power consumption. Once demand returns, the drive restarts seamlessly.

PID Controller – Built-in PID control enables precise regulation of pressure, flow, or temperature without external controllers, ensuring the system operates at optimal efficiency points.

Energy Monitoring – Real-time display of motor current, voltage, power, and energy consumption allows operators to track energy usage and identify optimization opportunities.

FAQs

What's the difference between V/F control and vector control?

V/F control keeps a fixed voltage-to-frequency ratio. It's fine for fans, pumps, and general applications where precise speed control isn't critical. Vector control separates flux and torque so you can control them independently—that gives you higher starting torque (up to 150% at 0.5Hz) and better speed accuracy. Sensorless vector doesn't need an encoder; closed-loop vector does, and it pushes speed accuracy to 0.1%. Most CSIVEI drives support both, so you can pick whichever fits your application.

Do I need an external braking resistor?

It depends. If you need rapid deceleration or the load has high inertia—like centrifuges, cranes, hoists, or winders—then yes, you'll need one. On drives that have an internal braking unit, the resistor handles the regenerative energy to avoid over‑voltage faults and shorten stopping times. For fans and pumps with slower deceleration, you can usually skip it.

What communication protocols are supported?

All CSIVEI drives come with Modbus RTU over RS485 as standard. Optional modules are available for Profibus DP, Profinet, Ethernet/IP, CANopen, and DeviceNet. These let you integrate with major PLC and SCADA systems for remote monitoring, parameter changes, and centralized control.

How do I set up the drive for the first time?

We drive have a Quick Start Wizard that walks you through the essentials in a few minutes:

Enter the motor nameplate data (power, voltage, current, frequency, RPM), pick an application macro (Fan/Pump, Conveyor, Constant Torque), set accel and decel times, choose the frequency source (keypad, analog input, communication), and run auto‑tuning to optimize motor control. The manual has all the details, and the keypad is removable so you can operate it remotely if needed.

What protections are built into the drive?

CSIVEI drives include a solid set of protections: over‑voltage, under‑voltage, over‑current, short circuit, over‑temperature (heatsink), phase loss on input or output, and motor overload (electronic thermal overload, I²t). These help keep things running reliably and extend equipment life.

Can I run multiple motors from one VFD?

Yes, you can run multiple motors in parallel from a single drive, as long as: the total current draw stays within the drive's output rating, each motor has its own thermal overload protection, and you're using V/F control (vector control isn't recommended for multi‑motor setups). This is common for fan arrays, conveyor sections, or pump stations where motors run at the same speed together.

How do I troubleshoot common faults?

The drive shows fault codes on the keypad for quick diagnosis:

●  OC (over‑current) – check for shorts, motor winding issues, or accel time too short

●  OV (over‑voltage) – check the braking resistor (if used) or decel time too short

●  UV (under‑voltage) – check input power and wiring

●  OH (over‑temperature) – check the cooling fan, ambient temperature, and mounting clearance

●  OL (overload) – check the motor load, increase accel time, or consider upsizing the drive

The manual has a full fault code table with detailed steps. If something's still off, CSIVEI tech support can help.

Does the VFD come with a warranty and technical support?

Yes. CSIVEI drives come with a standard 18‑month warranty from the date of manufacture (or 12 months from installation, whichever is later). Extended warranty options are available for critical applications. Global tech support is available via email, phone, and online resources—user manuals, application guides, and configuration software are all included.
