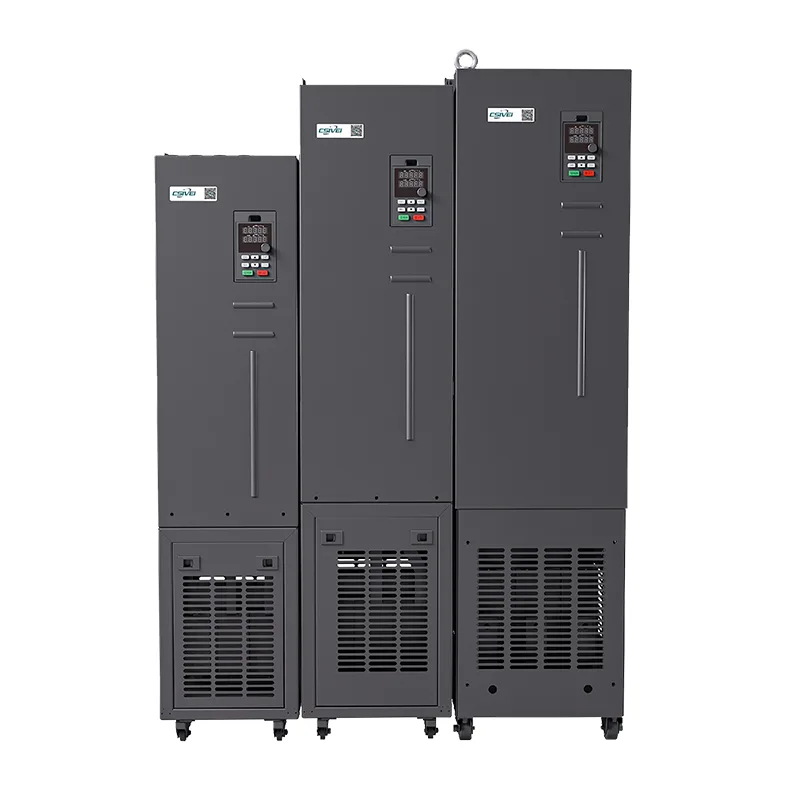

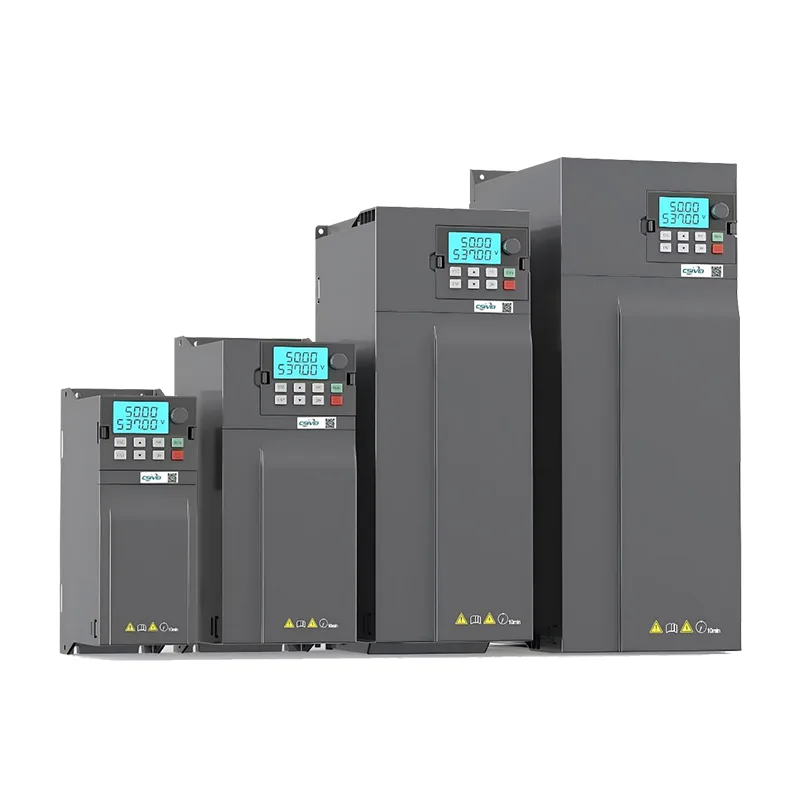

High Performance 3 Phase AC Drive VFD

Buy High Performance 3 Phase AC Drive VFD from Csivei factory in China. It is designed for heavy-duty industrial applications and suitable for large fans, centrifugal pumps, compressors, and production line conveyors. It delivers exceptional torque and stability under continuous operation. Powered by advanced closed-loop vector control, this drive supports high starting torque, built-in PLC functionality, multiple communication protocols (Modbus, Profibus optional), and an intuitive LCD keypad for real-time monitoring. The IP20 enclosure with optional IP40 filter ensures reliability in demanding environments.

What is the High Performance 3 Phase AC Drive VFD and Why It Matters?

At its core, a variable frequency drive regulates motor speed and torque by adjusting the frequency and voltage of the supplied power. But our CSIVEI VFD goes far beyond basic speed control.

It enables soft starting to reduce mechanical stress, dynamic torque response for heavy loads, and real-time energy optimization that directly lowers electricity consumption. For operations that require precise synchronization — such as multi-section conveyors, batching systems, or pressure-controlled pumps — this drive provides the accuracy and repeatability your process demands.

In short, it transforms a fixed-speed motor into a flexible, intelligent actuator that adapts to your production needs in real time.

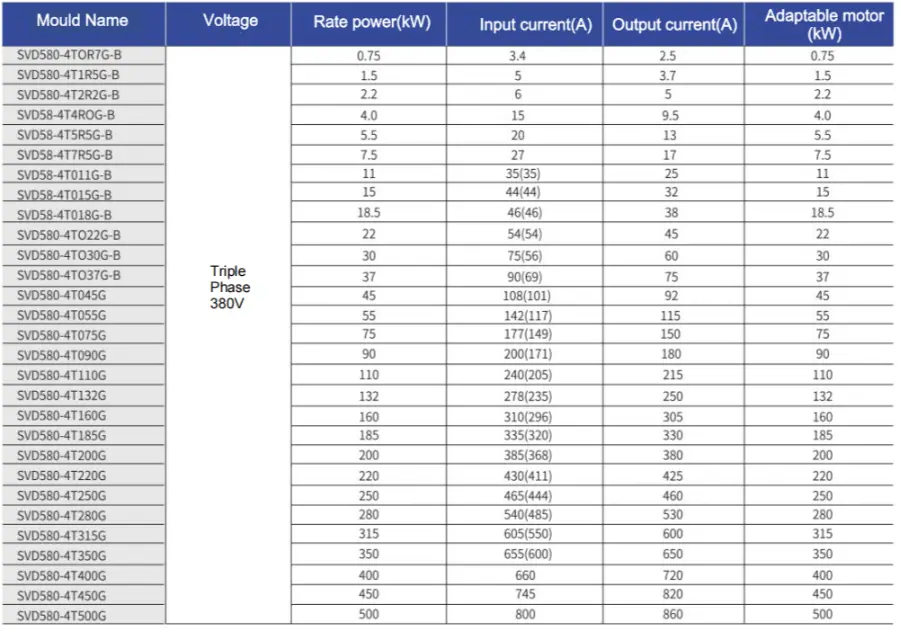

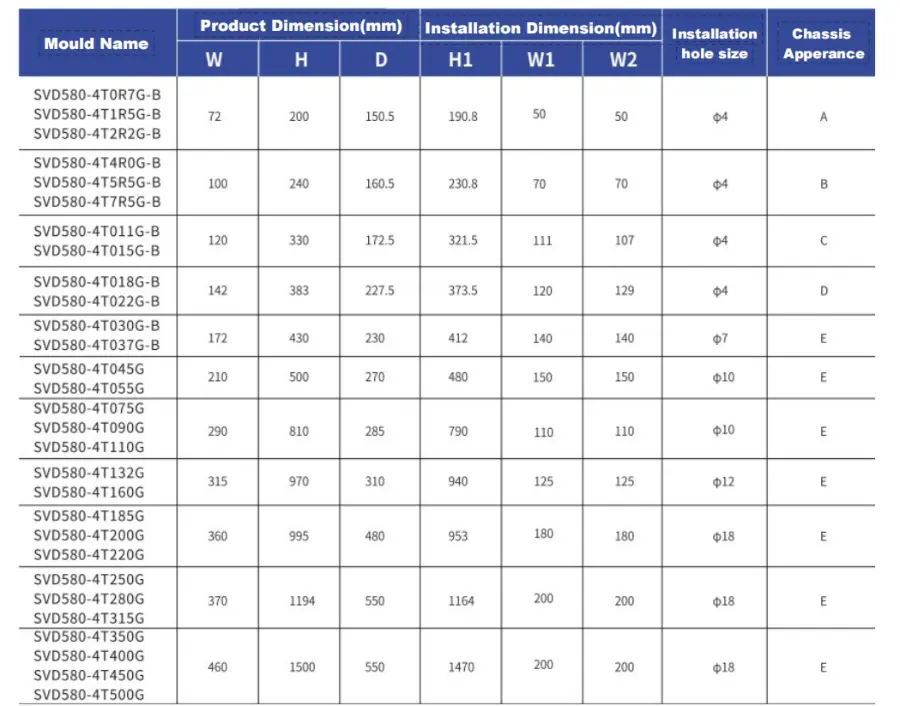

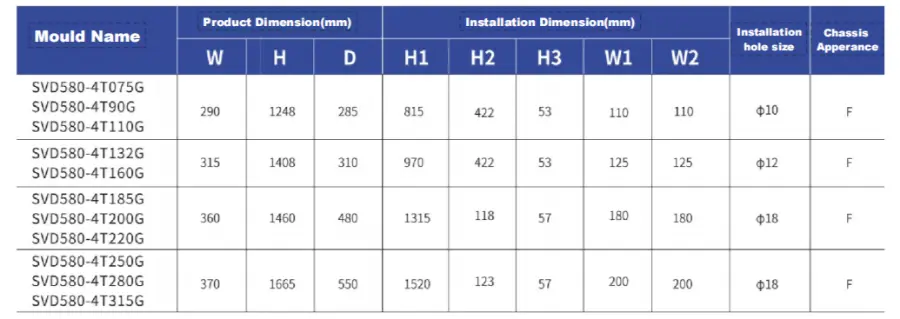

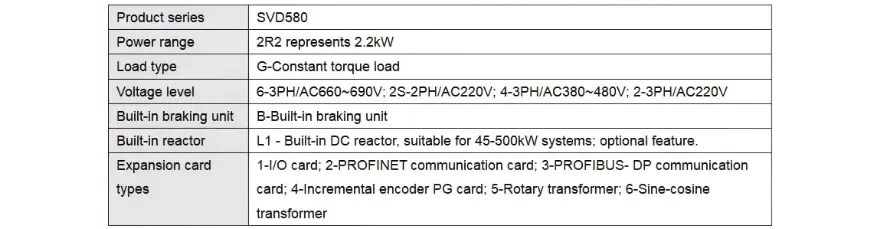

Core Parameters and Specifications

Key Advantages

1. Exceptional Low-Frequency Torque

The High Performance 3 Phase AC Drive VFD delivers 150% rated torque at 0.5 Hz in sensorless vector control (SVC) mode. This means reliable starting and stable operation even under heavy initial loads — such as crushers, slurry pumps, or high-inertia fans — where conventional drives often trip or stall.

2. Built-In Torque Limiting (“Excavator” Feature)

Unlike standard VFDs that simply trip on overcurrent, our drive includes an intelligent torque limiting function. It automatically caps torque during abrupt load changes, preventing mechanical shock and unexpected downtime. This feature is particularly valuable for applications with fluctuating loads, such as mixers, extruders, and hoisting equipment.

3. Automatic Voltage Regulation (AVR)

When grid voltage fluctuates — which is common in industrial zones — the AVR function maintains a stable output voltage to the motor. This protects your windings, ensures consistent torque, and prevents nuisance undervoltage trips.

4. Flexible Control Modes

Choose between SVC open-loop vector control for high-performance dynamic response, or V/F control for simpler, fan/pump-type applications. The drive also supports V/F separation, allowing independent adjustment of voltage and frequency for specialized motor setups.

5. Integrated PLC & PID Functionality

The built-in programmable logic capability handles simple automation tasks without requiring an external PLC. The integrated PID controller enables closed-loop process control — for example, maintaining constant pressure in a water supply system or stable temperature in a chiller — using standard feedback sensors.

Typical Applications

The CSIVEI High Performance 3 Phase AC Drive VFD is engineered for heavy-duty industrial applications requiring high starting torque and continuous duty:

Large pumps – irrigation pumps, drainage pumps, main water supply pumps

Centrifugal compressors – industrial air compressors, refrigeration systems

HVAC chillers – screw chillers, centrifugal chillers, large air handlers

Mining equipment – slurry pumps, ventilation fans, crushers

Metalworking machinery – lathes, milling machines, presses

With advanced vector control and multiple communication options, it integrates seamlessly into automated production lines.

FAQs

Do I need an external braking resistor?

It depends. If you need rapid deceleration or the load has high inertia—like centrifuges, cranes, hoists, or winders—then yes, you'll need one. On drives that have an internal braking unit, the resistor handles the regenerative energy to avoid over‑voltage faults and shorten stopping times. For fans and pumps with slower deceleration, you can usually skip it.

What communication protocols are supported?

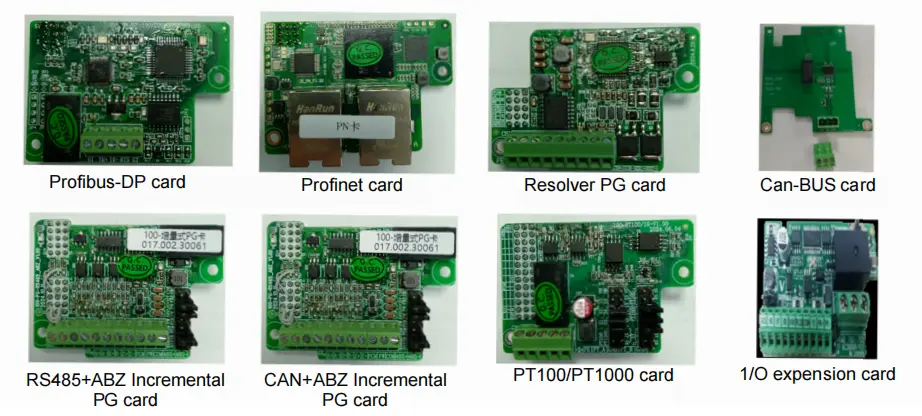

All CSIVEI drives come with Modbus RTU over RS485 as standard. Optional modules are available for Profibus DP, Profinet, Ethernet/IP, CANopen, and DeviceNet. These let you integrate with major PLC and SCADA systems for remote monitoring, parameter changes, and centralized control.

What protections are built into the drive?

CSIVEI drives include a solid set of protections: over‑voltage, under‑voltage, over‑current, short circuit, over‑temperature (heatsink), phase loss on input or output, and motor overload (electronic thermal overload, I²t). These help keep things running reliably and extend equipment life.

How does the VFD save energy?

For variable torque loads like fans and pumps, power follows the affinity laws—it's proportional to the cube of speed. Dropping speed by 20% cuts energy use by roughly 50%. The Automatic Energy Optimization (AEO) feature reduces voltage to match actual load for extra savings. Sleep Mode also shuts the motor off during low‑demand periods, eliminating idle power draw.

What's the typical lifespan of a VFD, and how do I maintain it?

With proper installation and conditions, a VFD can last 10–15 years. Key maintenance: keep the enclosure clean—dust buildup kills cooling efficiency; check cooling fans (typically last 3–7 years; replace if noisy or failed); inspect DC bus capacitors—they age with time and temperature—if the drive has been stored over two years, reform the caps before powering up; monitor ambient temperature; back up parameters to the keypad or external storage occasionally. A quick inspection every 6–12 months helps avoid surprises.

Customer Case Study

A food processing plant faced recurring product pile-ups and gaps across multiple conveyor sections. Manual speed adjustments were inefficient and caused frequent line stoppages.

Our Solution – Three CSIVEI High Performance 3 Phase AC Drive VFDs were installed on key conveyor sections, linked via Modbus to the central PLC for coordinated speed control.

Results Achieved:

Conveyor speeds automatically synchronized with real-time production rates

Downtime reduced by 25%

Product changeover time cut from 30 minutes to 10 minutes

The solution was subsequently expanded to six additional production lines

This case demonstrates how our VFD delivers measurable operational improvements, not just theoretical benefits.

●  The solution has been expanded to six additional production lines.
