15HP 11kw VFD Frequency Drive Pump VFD

Key features include high overload capacity, built-in DC reactor for harmonic mitigation, multiple communication interfaces, and configurable I/O expansion. The heavy-duty enclosure with reinforced cooling system ensures reliable operation in high-temperature industrial environments.

Combining energy-saving capabilities with intelligent protection features, the CSIVEI 15HP 11kw VFD Frequency Drive Pump VFD maximizes system uptime and operational efficiency for large-power applications.

Core Parameters and Specifications

Typical Applications

The CSIVEI 15HP 11kw VFD Frequency Drive Pump VFD delivers robust performance for heavy industrial equipment requiring continuous operation:

●  Large pumps – main water supply pumps, industrial cooling pumps

●  Industrial fans – mine ventilation, cement plant fans, dust collectors

●  Compressors – large air compressors, nitrogen compressors

●  Mixers – concrete mixers, chemical reactors, pulp mixers

●  Centrifuges – sugar centrifuges, oil centrifuges, decanters

With reinforced cooling and harmonic mitigation features, it ensures reliable operation in harsh environments.

Robust Protection & Reliability

Built to withstand demanding industrial environments, the CSIVEI VFD series incorporates multiple protection mechanisms to ensure continuous operation and extended service life.

Comprehensive Motor Protection – Integrated protection includes over-voltage, under-voltage, over-current, over-temperature, phase loss, and short circuit protection. The drive automatically trips or limits output to prevent damage to both the drive and the connected motor.

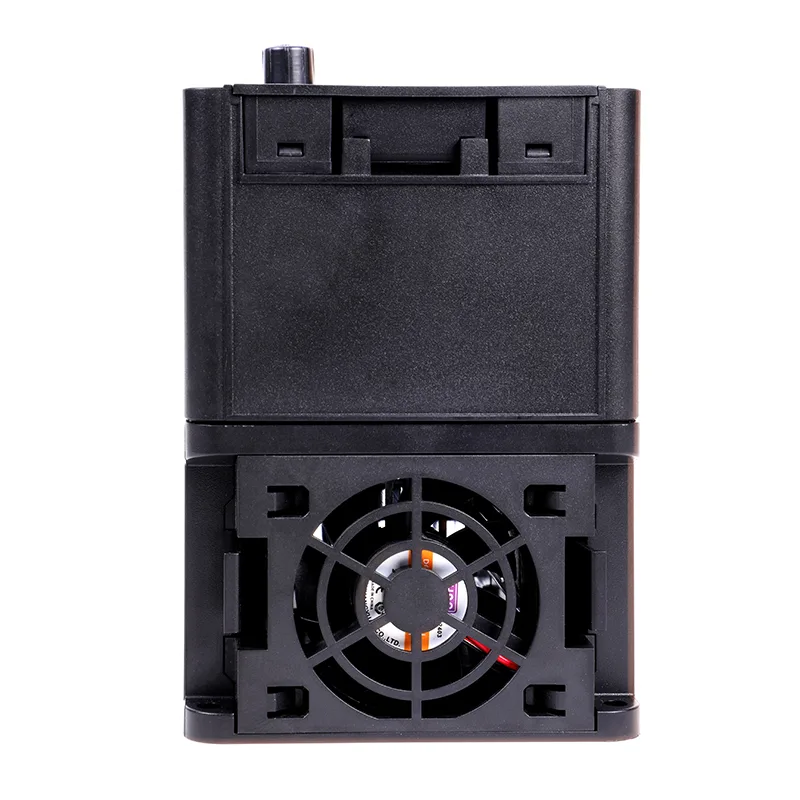

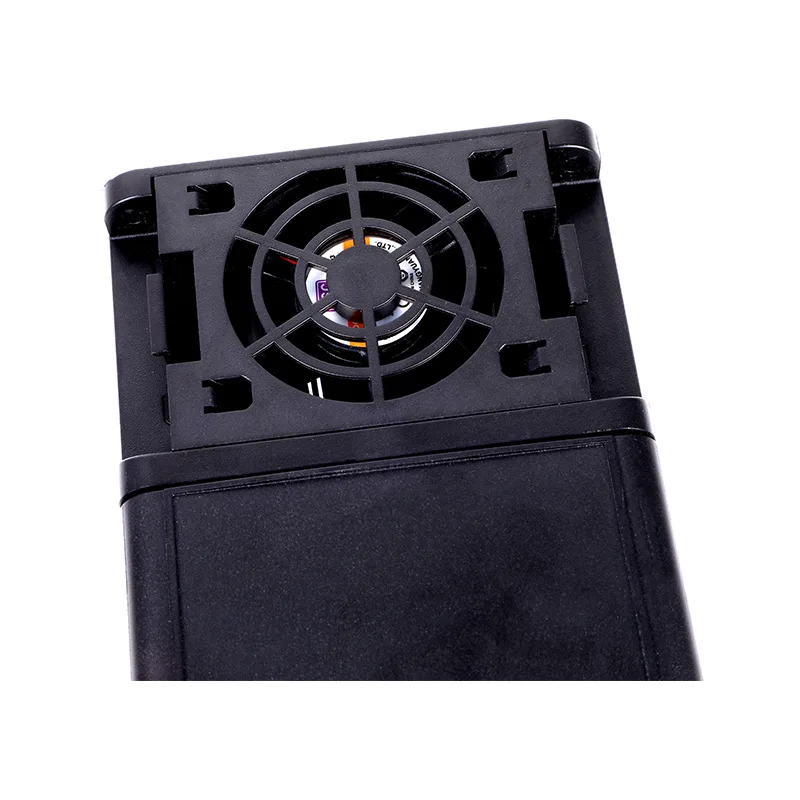

Thermal Management – Intelligent fan control adjusts cooling based on internal temperature and load conditions, minimizing noise and extending fan lifespan. High-power models feature reinforced heatsink designs for enhanced thermal dissipation.

Environmental Protection – Standard IP20 enclosure suitable for control panel installation. Optional IP40/IP54/IP66 enclosures are available for applications in dusty, humid, or wash-down environments. Conformal coating on PCBs provides additional protection against moisture and contaminants.

Built-in EMC Filter – Selected models include an integrated electromagnetic compatibility filter, simplifying compliance with CE and other EMC standards and reducing installation costs.

FAQs

What's the difference between V/F control and vector control?

V/F control keeps a fixed voltage-to-frequency ratio. It's fine for fans, pumps, and general applications where precise speed control isn't critical. Vector control separates flux and torque so you can control them independently—that gives you higher starting torque (up to 150% at 0.5Hz) and better speed accuracy. Sensorless vector doesn't need an encoder; closed-loop vector does, and it pushes speed accuracy to 0.1%. Most CSIVEI drives support both, so you can pick whichever fits your application.

How do I choose the right VFD for my motor?

A few things to consider:

●  Motor power—the VFD should match or be slightly larger than the motor rating.

●  Input voltage—single‑phase 230V or three‑phase 400V, make sure it matches your supply.

●  Load type—constant torque loads like conveyors or extruders usually need the VFD sized at 100–120% of motor power. Variable torque loads like fans and pumps can often use a VFD matched to motor power, plus you get energy savings.

●  Environment—for dusty, humid, or outdoor locations, go for a higher IP rating (IP40, IP54, IP66) or put the drive in a protected enclosure.

●  Communication—if you need to talk to a PLC or SCADA, check that the drive supports your protocol (Modbus RTU is standard; Profibus, Ethernet/IP, etc. are optional).

●  CSIVEI also has a sizing tool and tech support if you want a second opinion.

Can I use a single‑phase input VFD with a three‑phase motor?

Yes. CSIVEI's single‑phase 230V drives take single‑phase input and output three‑phase power to the motor. It's a common setup when only single‑phase power is available but you want the efficiency and reliability of a three‑phase motor. Just make sure the motor's voltage matches the drive's output—230V three‑phase.

Do I need an external braking resistor?

It depends. If you need rapid deceleration or the load has high inertia—like centrifuges, cranes, hoists, or winders—then yes, you'll need one. On drives that have an internal braking unit, the resistor handles the regenerative energy to avoid over‑voltage faults and shorten stopping times. For fans and pumps with slower deceleration, you can usually skip it.

What communication protocols are supported?

All CSIVEI drives come with Modbus RTU over RS485 as standard. Optional modules are available for Profibus DP, Profinet, Ethernet/IP, CANopen, and DeviceNet. These let you integrate with major PLC and SCADA systems for remote monitoring, parameter changes, and centralized control.

How do I set up the drive for the first time?

CSIVEI drives have a Quick Start Wizard that walks you through the essentials in a few minutes:

Enter the motor nameplate data (power, voltage, current, frequency, RPM), pick an application macro (Fan/Pump, Conveyor, Constant Torque), set accel and decel times, choose the frequency source (keypad, analog input, communication), and run auto‑tuning to optimize motor control. The manual has all the details, and the keypad is removable so you can operate it remotely if needed.

What protections are built into the drive?

CSIVEI drives include a solid set of protections: over‑voltage, under‑voltage, over‑current, short circuit, over‑temperature (heatsink), phase loss on input or output, and motor overload (electronic thermal overload, I²t). These help keep things running reliably and extend equipment life.

Can I run multiple motors from one VFD?

Yes, you can run multiple motors in parallel from a single drive, as long as: the total current draw stays within the drive's output rating, each motor has its own thermal overload protection, and you're using V/F control (vector control isn't recommended for multi‑motor setups). This is common for fan arrays, conveyor sections, or pump stations where motors run at the same speed together.

How do I troubleshoot common faults?

The drive shows fault codes on the keypad for quick diagnosis:

●  OC (over‑current) – check for shorts, motor winding issues, or accel time too short

●  OV (over‑voltage) – check the braking resistor (if used) or decel time too short

●  UV (under‑voltage) – check input power and wiring

●  OH (over‑temperature) – check the cooling fan, ambient temperature, and mounting clearance

●  OL (overload) – check the motor load, increase accel time, or consider upsizing the drive

The manual has a full fault code table with detailed steps. If something's still off, CSIVEI tech support can help.

How does the VFD save energy?

For variable torque loads like fans and pumps, power follows the affinity laws—it's proportional to the cube of speed. Dropping speed by 20% cuts energy use by roughly 50%. The Automatic Energy Optimization (AEO) feature reduces voltage to match actual load for extra savings. Sleep Mode also shuts the motor off during low‑demand periods, eliminating idle power draw.

What's the typical lifespan of a VFD, and how do I maintain it?

With proper installation and conditions, a VFD can last 10–15 years. Key maintenance: keep the enclosure clean—dust buildup kills cooling efficiency; check cooling fans (typically last 3–7 years; replace if noisy or failed); inspect DC bus capacitors—they age with time and temperature—if the drive has been stored over two years, reform the caps before powering up; monitor ambient temperature; back up parameters to the keypad or external storage occasionally. A quick inspection every 6–12 months helps avoid surprises.

Can I use the VFD outdoors or in wash‑down environments?

Standard IP20 drives need to be in a clean, dry panel. For outdoor or harsh environments, CSIVEI offers higher IP ratings:

●  IP40 – good for dusty places like textile mills or woodworking

●  IP54/IP55 – dust‑tight and splash‑proof; works for outdoor enclosures and wash‑down areas

●  IP66 – fully dust‑tight and handles powerful water jets; suited for food processing, car washes, or outdoor use without extra enclosures

●  If corrosive gases are present, conformal coating on the PCB is recommended.

Does the VFD come with a warranty and technical support?

Yes. CSIVEI drives come with a standard 18‑month warranty from the date of manufacture (or 12 months from installation, whichever is later). Extended warranty options are available for critical applications. Global tech support is available via email, phone, and online resources—user manuals, application guides, and configuration software are all included.

Customer Case: Industrial Ventilation Fan

A furniture manufacturing facility required precise airflow control for its dust collection system. Running fans at full speed continuously was inefficient and created excessive noise.

Solution: A CSIVEI 18-30kW VFD was installed on the main exhaust fan, with a pressure sensor monitoring duct pressure to regulate fan speed.

Results:

●  Fan speed automatically adjusts to match dust collection demand

●  Energy savings of 45% during partial load operation

●  Noise level reduced by 12 dB, improving working conditions

●  Reduced mechanical wear on fan bearings and belts

●  The system now meets both environmental compliance and operational efficiency targets.
