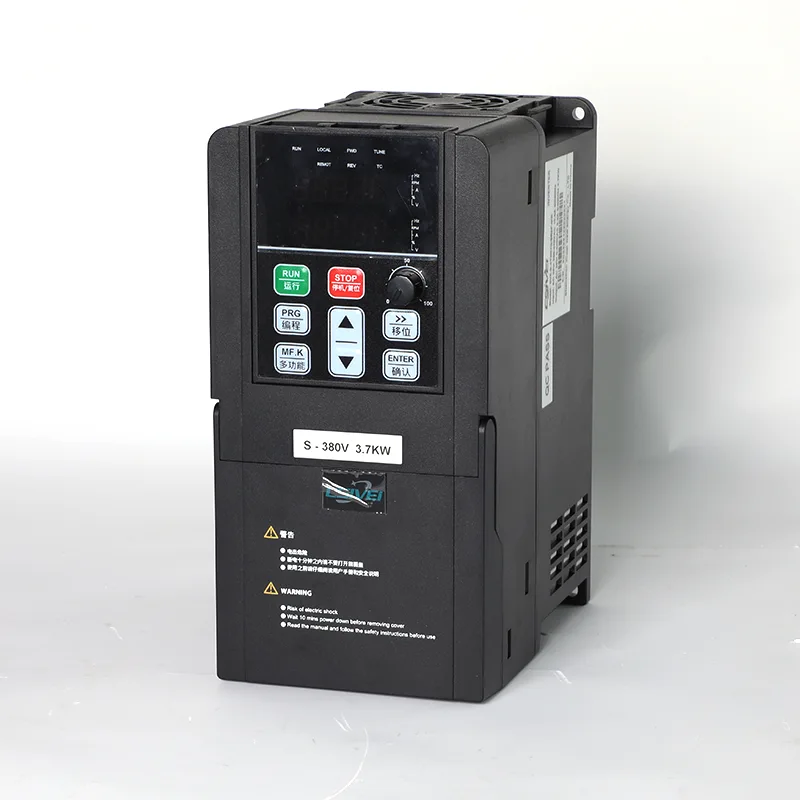

A 3HP VFD 3 phase Variable Speed Drive HVAC solution is designed to optimize motor performance, reduce energy consumption, and improve temperature control in modern heating, ventilation, and air conditioning systems. By adjusting motor speed according to real-time load requirements, a variable frequency drive helps HVAC equipment operate more efficiently while extending motor lifespan and reducing maintenance costs. This article explains how 3HP three phase VFD technology works, its benefits, applications, installation considerations, and how businesses can choose the right solution for their HVAC projects.
A 3HP VFD 3 phase Variable Speed Drive HVAC system is an advanced motor control solution that regulates the operating speed of three-phase AC motors used in heating, ventilation, and air conditioning equipment. Instead of allowing motors to run continuously at maximum speed, the VFD adjusts frequency and voltage output based on actual system demand.
In traditional HVAC systems, fans, pumps, and compressors often operate at a fixed speed. This approach can cause unnecessary energy consumption because HVAC loads usually vary throughout the day. A variable speed drive solves this problem by providing accurate motor speed adjustment, allowing equipment to deliver only the required performance.
A 3HP VFD is commonly used for medium-sized HVAC applications where motors require reliable speed regulation, stable operation, and energy-saving performance. It is especially suitable for air handling units, ventilation fans, circulation pumps, and commercial climate control systems.
| Parameter | Description |
|---|---|
| Rated Power | 3HP (approximately 2.2kW) |
| Input Phase | Three Phase AC Power Supply |
| Output Frequency | Adjustable frequency output for motor speed control |
| Application | HVAC fans, pumps, compressors, and industrial motors |
| Control Method | Variable frequency speed regulation |
| Main Benefits | Energy saving, smooth starting, precise control, reduced maintenance |
The working principle of a 3HP VFD 3 phase Variable Speed Drive is based on converting fixed-frequency electrical power into adjustable-frequency output power. The drive controls motor speed by changing the frequency supplied to the motor.
The process generally includes three main stages:
For HVAC systems, this control method provides significant advantages because airflow and water circulation requirements are rarely constant. The VFD automatically adjusts motor speed according to temperature changes, pressure requirements, or building occupancy conditions.
| HVAC Challenge | How VFD Technology Helps |
|---|---|
| High electricity consumption | Reduces unnecessary motor operation by matching speed with demand |
| Frequent motor starting impact | Provides soft start and reduces mechanical stress |
| Unstable airflow | Maintains accurate fan speed control |
| High maintenance costs | Reduces wear caused by sudden acceleration and constant full-speed operation |
| Noise problems | Allows motors to operate at lower speeds when full capacity is unnecessary |
Energy efficiency has become a major concern for commercial buildings, factories, and industrial facilities. HVAC systems are among the largest energy consumers, and motor-driven equipment plays a significant role in overall electricity usage.
A 3HP VFD provides intelligent motor management that helps HVAC systems operate more economically and reliably.
One of the biggest advantages of using a variable speed drive is energy reduction. Since HVAC loads often operate at partial capacity, controlling motor speed can significantly lower power consumption compared with fixed-speed operation.
For example, when cooling demand decreases during nighttime hours, the VFD can reduce fan or pump speed instead of running the motor at maximum output.
HVAC comfort depends on stable airflow and accurate temperature management. A 3HP VFD enables smoother adjustments, helping maintain consistent indoor environments without frequent on/off cycling.
Direct motor starting creates high current spikes and mechanical stress. A VFD gradually increases motor speed during startup, reducing stress on electrical and mechanical components.
A 3HP VFD 3 phase Variable Speed Drive HVAC solution can be integrated into various heating, ventilation, and air conditioning systems. Its flexible speed control capability makes it suitable for commercial buildings, factories, warehouses, hotels, hospitals, and other facilities requiring efficient climate management.
| HVAC Equipment | VFD Application | Main Advantages |
|---|---|---|
| Air Handling Units (AHU) | Controls fan motor speed according to airflow requirements | Stable air distribution and energy savings |
| Ventilation Fans | Adjusts ventilation capacity based on indoor conditions | Improved comfort and reduced noise |
| Water Pumps | Regulates pump speed for heating and cooling circulation | Lower energy consumption and longer pump life |
| Cooling Systems | Controls motor operation for optimized cooling performance | Better temperature stability |
| Industrial HVAC Systems | Provides precise motor control in demanding environments | Higher reliability and operational efficiency |
Selecting the correct 3HP VFD requires careful consideration of motor specifications, operating conditions, and HVAC requirements. Choosing an unsuitable model may result in poor performance, increased energy consumption, or reduced equipment lifespan.
Traditional HVAC motor systems usually operate at a fixed speed regardless of actual demand. Although simple, this method often wastes energy and creates unnecessary mechanical stress.
A 3HP VFD provides intelligent speed regulation, allowing HVAC equipment to respond dynamically to changing conditions.
| Comparison | Traditional Motor Control | 3HP VFD Control |
|---|---|---|
| Motor Speed | Fixed speed operation | Adjustable speed according to demand |
| Energy Usage | Higher energy consumption | Improved energy efficiency |
| Starting Method | Direct starting with high current | Soft starting with reduced impact |
| Temperature Control | Less precise | More accurate adjustment |
| Maintenance Requirements | Higher mechanical stress | Reduced equipment wear |
| Operating Noise | Higher at full speed | Lower when operating at reduced speed |
Proper installation and regular maintenance are essential for maximizing the performance of a 3HP VFD 3 phase Variable Speed Drive HVAC system.
A properly installed and maintained VFD can provide years of reliable operation while helping HVAC systems maintain excellent performance.
Zhejiang Csivei Automation Co., Ltd. focuses on providing reliable automation solutions and motor control technologies for industrial and HVAC applications. With professional experience in variable frequency drive development, the company helps customers achieve better energy management, improved equipment stability, and optimized operational efficiency.
The company understands that every HVAC project has different requirements. Factors such as motor specifications, environmental conditions, and control systems must be carefully considered to achieve the best results. Through high-quality products and technical support, Zhejiang Csivei Automation Co., Ltd. provides practical solutions for businesses seeking efficient and dependable motor control systems.
A 3HP VFD controls motor speed by adjusting frequency and voltage output. In HVAC applications, it helps fans, pumps, and other motor-driven equipment operate according to actual demand, improving efficiency and reducing energy waste.
Yes. A 3HP three-phase VFD is commonly used for HVAC fans, circulation pumps, ventilation systems, and other variable-load motor applications.
Energy savings depend on system design, operating conditions, and load variation. In many HVAC applications, reducing motor speed during partial-load operation can significantly lower electricity consumption compared with fixed-speed control.
A professional manufacturer can provide reliable products, proper technical guidance, application support, and solutions that match specific HVAC requirements. This helps improve system reliability and long-term operating performance.
A 3HP VFD 3 phase Variable Speed Drive HVAC system is an effective solution for businesses looking to reduce energy costs, improve motor performance, and achieve more intelligent HVAC control.
Zhejiang Csivei Automation Co., Ltd. provides professional automation and motor control solutions designed to meet different application requirements. Whether you need HVAC upgrades, industrial motor control, or customized VFD solutions, our team is ready to support your project.
Contact us today to discover the right 3HP VFD solution for your HVAC system and improve your equipment efficiency.
