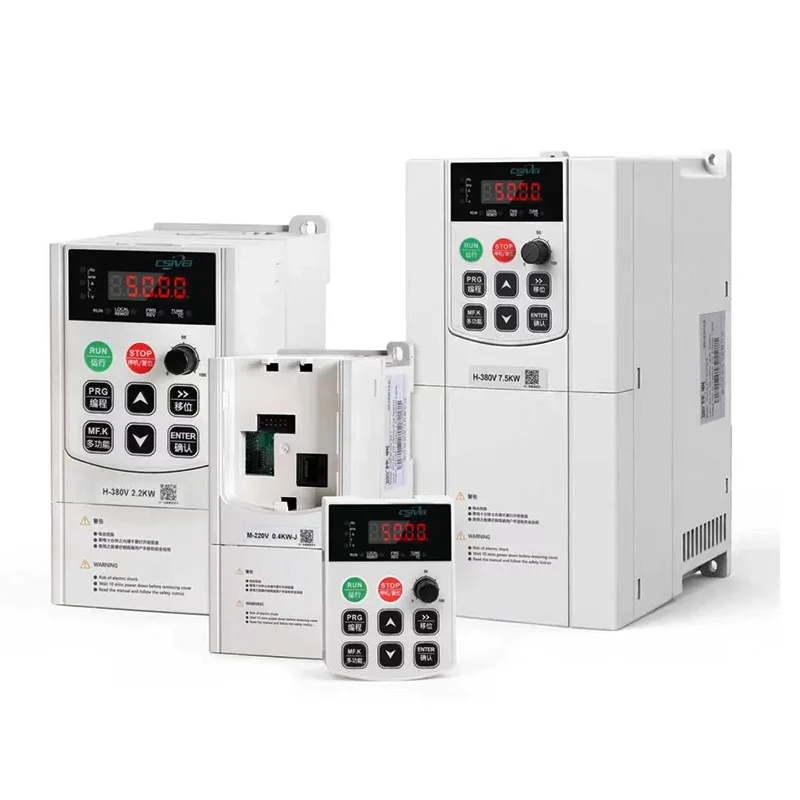

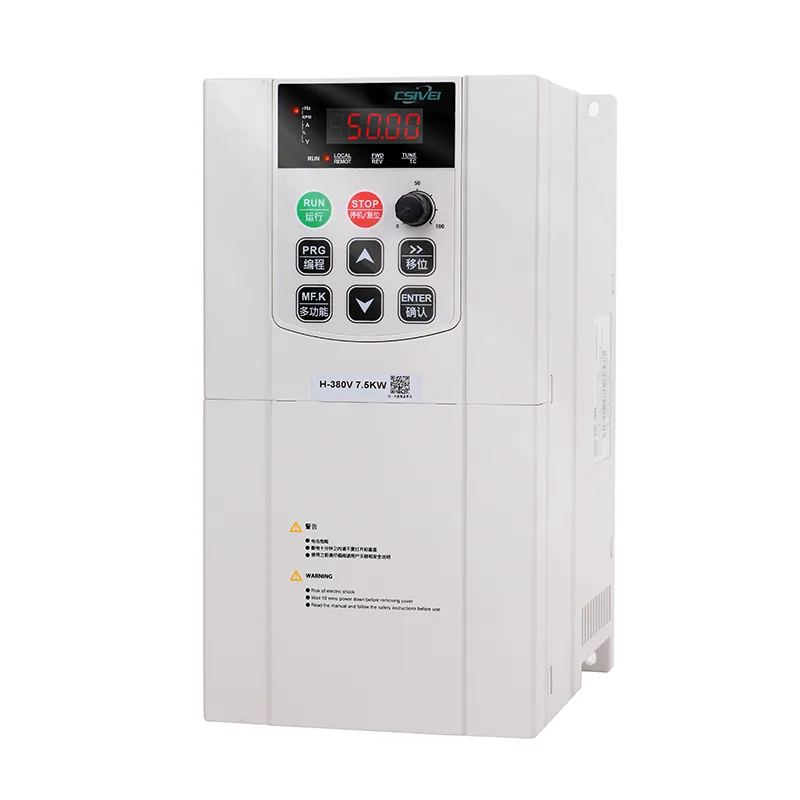

4kw Water Pump Inverter Solar VFD

The CSIVEI 4kw Water Pump Inverter Solar VFD is a high-performance solution for large solar water pumping projects. Designed for deep-well submersible pumps and booster stations, it delivers high starting torque with sensorless vector control. The drive automatically adjusts output frequency based on solar panel voltage, ensuring maximum water flow throughout the day. Built-in PID for constant pressure, dry-run protection, and fault log storage. The IP20 enclosure with optional IP40 filter is suitable for control rooms. Supports remote monitoring via GPRS/4G modules. CSIVEI provides reliable, off-grid pumping for community water supply and large-scale agriculture.

Core Parameters and Specifications

Typical Applications

For ecological restoration projects, this 4kw Water Pump Inverter Solar VFD provides a sustainable water source for afforestation, grassland rehabilitation, and desert green belts. It lifts groundwater or collects surface water to irrigate tree seedlings, shrubs, and native vegetation in arid regions. The system can be fully automated with timer or soil moisture sensors, delivering water only when needed. Its wide input voltage range accepts solar arrays of various configurations, making it easy to scale. Deployed in anti‑desertification belts, roadside tree planting, mine reclamation, and wetland restoration, the drive ensures high uptime without fuel logistics, even in the most remote locations.

Vector Control & Pump-Specific Algorithms

The CSIVEI factory's quality 4kw Water Pump Inverter Solar VFD employs sensorless vector control optimized for centrifugal and submersible pump loads. This delivers:

●  High starting torque – up to 150% at 0.5Hz, essential for deep-well pumps with long shafts.

●  Stable low-speed operation – prevents stalling when solar power is marginal.

●  Automatic pump curve adaptation – the drive learns the pump’s head-flow characteristics to maintain optimum efficiency.

●  Constant pressure / constant flow modes – built-in PID accepts feedback from pressure or flow sensors, maintaining setpoint regardless of solar fluctuations.

●  Soft start & soft stop – eliminates water hammer, pipe stress, and motor surge current.

These algorithms ensure the pump operates smoothly across the entire solar day, from early morning to late afternoon, without frequent tripping or mechanical shock.

FQA

Q1: The drive shows “Dry‑Run” fault but there is water in the well. What’s wrong?

A: The dry‑run sensor (flow switch, electrode, or pressure sensor) may be incorrectly installed or calibrated. Check sensor wiring and set the detection delay longer (parameter P.61) to avoid false trips during pump startup. Also verify that the pump is actually submerged – water level may have dropped below the intake.

Q2: Does the drive have an energy saving mode beyond MPPT?

A: Yes. The “Auto Energy Optimization” (AEO) feature reduces motor voltage when pump load is light (e.g., low flow demand), cutting energy use by 10‑20% without affecting output. Enable parameter P.52 = 1.

Q3: What data can I log from the drive?

A: The drive logs daily energy yield (kWh), water volume (m³), pump runtime (hours), fault events, and cumulative totals. Data is stored in internal memory (last 30 days) and can be exported via Modbus or SD card (optional).

Q4: Do I need a separate pump controller or soft starter?

A: No. The CSIVEI solar VFD integrates all control functions: MPPT, variable frequency drive, pump protection (dry‑run, overload, pipe burst), and optional PID for constant pressure. It replaces both pump controllers and soft starters.

Q5: What grounding requirements does this drive have?

A: Proper grounding is critical. Connect the drive’s PE terminal to a dedicated earth ground using a copper conductor. Also ground the solar panel frames and pump motor. Failure to ground may cause electrical shock or drive malfunction.

Installation Precautions

Indoor mounting required – The standard IP20 enclosure is designed for control rooms or weatherproof cabinets. For outdoor use, order the optional IP54 enclosure or install in a protective housing.

Adequate ventilation – Maintain minimum clearance of 100mm above and below the drive to ensure proper heat dissipation. Ambient temperature should not exceed 40°C.

Correct cable sizing – Use cables rated for at least 125% of rated current to prevent overheating. Keep DC input cables as short as possible to reduce voltage drop and power loss.

Proper grounding – Connect the PE terminal to a dedicated earth ground. Also ground solar panel frames and pump motor. Improper grounding may cause electrical shock, drive malfunction, or lightning damage.
