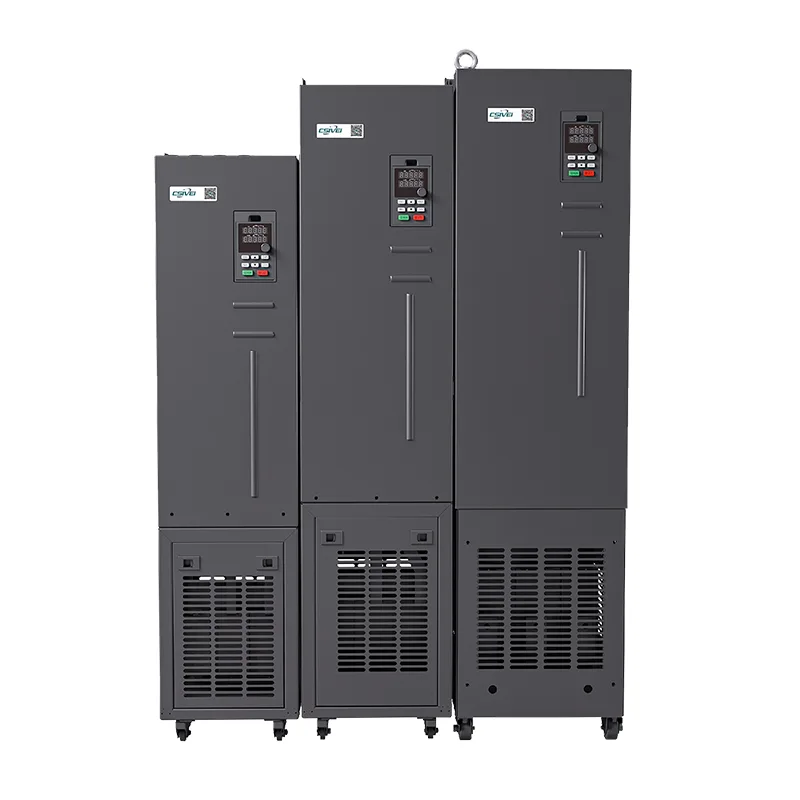

450kw Constant Torque Variable Frequency Drive

As a professional manufacturer in China, CSIVEI would like to provide you high quality 450kw Constant Torque Variable Frequency Drive, which is the ultimate solution for ultra-high-power motor control. Designed for mega pumps, gas compressors, mining mills, marine propulsion, and large tunnel ventilation fans, this drive delivers exceptional reliability and efficiency. Featuring advanced closed-loop vector control with encoder feedback, built-in harmonic filters, redundant cooling, and modular construction for easy maintenance. The IP21/IP54 enclosure options and conformal-coated PCBs ensure operation in the harshest industrial environments. Extensive communication capabilities (Profinet, EtherCAT, Modbus TCP) enable full integration into Industry 4.0 systems.

Core Parameters and Specifications

Applicable Scenarios

The CSIVEI 450kw Constant Torque Variable Frequency Drive variable frequency drive from csivei is extensively deployed in Heating, Ventilation, and Air Conditioning systems. In commercial buildings and industrial facilities, fans and pumps often operate at fixed speeds regardless of actual thermal load, leading to substantial energy waste. By integrating 450kw Constant Torque Variable Frequency Drive, facility managers can modulate motor speed in response to real-time temperature and pressure sensors. This not only achieves significant reductions in electricity consumption but also minimizes mechanical stress on ductwork and piping. As a dedicated China manufacturer, csivei ensures that the 450kw Constant Torque Variable Frequency Drive provides a reliable and cost-effective method for optimizing indoor climate control and meeting green building standards.

TProduct Features

Industrial-Grade Durability – IP21/IP54 enclosures and conformal-coated PCBs withstand dust, moisture, and corrosive environments. Built for mining, marine, and desert operations.

Precision Vector Control – Closed-loop encoder feedback delivers 0.5Hz/150% starting torque, 1:100 speed range, and ±0.5% stability accuracy. Smooth, responsive, and reliable under variable loads.

Energy Efficiency – Automatic voltage regulation (AVR) and adaptive V/F curves minimize kWh consumption. Typical efficiency exceeds 95% at rated load, directly reducing operating costs.

Smart Integration – Native support for Profinet, EtherCAT, and Modbus TCP enables seamless Industry 4.0 connectivity. Real-time data, remote diagnostics, and predictive maintenance are built in.

Robust Overload Capacity – Handles 150% for 60s, 170% for 12s, and 190% for 1.5s. Torque limiting prevents nuisance tripping—keeps production running through peak loads.

Low Maintenance Design – Modular construction simplifies servicing. Redundant cooling ensures continuous operation even in high-ambient environments. Downtime is minimized.

FAQ

Q1: Is an output contactor permitted between the drive and the motor?

A: Yes, but only for isolation. Do not open or close the contactor while the drive is outputting voltage. Interlock the control system to inhibit output before contactor switching to prevent overcurrent trips or damage.

Q2: Can this drive run on a single-phase input?

A: No. The standard model requires three-phase 380V–440V AC input. Single-phase operation is not supported unless an external phase converter is installed upstream.

Q3: What earth fault protection does the drive offer?

A: The drive includes electronic earth fault detection that monitors output phase current balance. If imbalance exceeds a preset threshold, the drive trips instantly to protect both the drive and motor from insulation failures.

Q4: What is the DC braking function used for?

A: DC braking injects direct current into the motor stator to create a stationary magnetic field, providing holding torque or rapid stopping without mechanical brakes. You can configure braking current, duration, and activation frequency to suit your application.

Q5: What is the typical efficiency at rated load?

A: Efficiency is typically above 95% at rated load. Actual value depends on carrier frequency, load level, and input voltage. Higher carrier frequencies reduce motor noise but increase losses; lower frequencies improve thermal performance.
